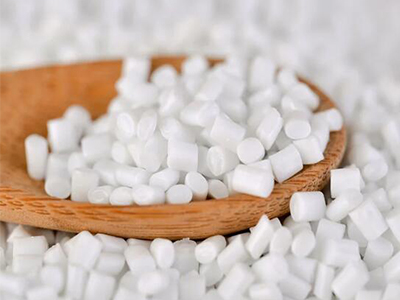

Polyester chips drying

Polyester chips, primarily composed of polyethylene terephthalate (PET), are the raw material for producing fibers, bottles, films, and packaging materials. Common Drying Methods：Dehumidifying Dryers, Vacuum Drying, Fluidized Bed Dryers



Polyester chips, primarily composed of polyethylene terephthalate (PET), are the raw material for producing fibers, bottles, films, and packaging materials. Drying is a critical pre-processing step to remove absorbed moisture, ensuring optimal melt stability, mechanical properties, and production efficiency during extrusion or injection molding.

Purpose of Drying
Moisture Removal: Eliminate surface and internal moisture (typically 0.3–0.6% in undried chips) to <0.005% (50 ppm) to prevent hydrolysis during high-temperature processing.

Prevent Hydrolysis: Moisture causes PET chain scission, reducing intrinsic viscosity (IV) and weakening final product strength.

Ensure Melt Homogeneity: Avoid defects like bubbles, gels, or discoloration in extruded products.

Energy Efficiency: Optimize drying to reduce cycle times and energy consumption.

Common Drying Methods
Dehumidifying Dryers (Most Common)

Process: Pre-dried air with a dew point of -40°C to -30°C circulates through a hopper containing PET chips.

Temperature: 150–180°C (varies by chip crystallinity and IV).

Drying Time: 4–6 hours for amorphous chips; 6–8 hours for crystalline grades.

Advantages: Precise moisture control for high-volume production.

Vacuum Drying

For specialty or high-IV PET grades.

Process: Low-pressure environment allows drying at lower temperatures (100–130°C).

Applications: Medical-grade PET or optical films requiring minimal thermal stress.

Fluidized Bed Dryers

Rapid drying for small batches.

Process: Hot air fluidizes chips, enhancing heat transfer and reducing drying time.

Key Process Parameters
Drying Temperature:

Amorphous PET: 150–160°C.

Crystalline PET: 170–180°C.

Dew Point: ≤-40°C for dehumidifying air.

Residence Time: 4–8 hours (depending on chip size and initial moisture).

Airflow Rate: 0.5–1.5 m³/min per kg of material.

Quality Control Measures
Moisture Content: Karl Fischer titration (<50 ppm).

Intrinsic Viscosity (IV): Measured via viscometer (e.g., target IV: 0.72–0.85 dL/g for bottle-grade PET).

Color Testing: Spectrophotometric analysis (L, a, b* values) to detect thermal degradation.

DSC Analysis: Verify crystallinity levels (20–45% for processing stability).

Post-Drying Handling
Cooling: Gradually reduce temperature to <50°C to prevent moisture reabsorption.

Storage: Sealed in moisture-proof containers or nitrogen-purged silos.

Feeding: Directly transferred to extruders via dry-air conveying systems.

Challenges & Solutions
Thermal Degradation:

Solution: Optimize temperature profiles; use antioxidants in PET formulation.

Energy Consumption:

Solution: Heat recovery from exhaust air (reduces energy use by 20–30%).

Chip Clumping:

Solution: Pre-crystallization step for amorphous chips.

Dust Generation:

Solution: Install cyclones or electrostatic filters in drying systems.

Applications of Dried PET Chips
Bottle Production: Carbonated drink bottles, food containers.

Textiles: Polyester fibers for apparel and industrial fabrics.

Films: Packaging films, solar panel backsheets.

Engineering Plastics: Reinforced PET for automotive components.

Technological Advances
Smart Drying Systems: IoT-enabled dryers with real-time IV and moisture monitoring.

Low-Dew Point Adsorbents: Advanced molecular sieves for ultra-dry air generation.

Hybrid Dryers: Combined dehumidifying and vacuum drying for energy savings.

Recycled PET (rPET) Drying: Tailored protocols to handle moisture-sensitive post-consumer flakes.
